CohortConnect is an advanced desktop address book which facilitates networking among Computer Science (CS) students. It is optimized for use via a Command Line Interface (CLI) while still having the benefits of a Graphical User Interface (GUI).

With advanced features for managing large groups of contacts, CohortConnect is intended for use in a university setting. At the start of the semester, professors will distribute CSV or JSON files containing a list of students. Instantly load them into CohortConnect with a single Import command. With data collected from students before the semester, our Find A Buddy feature helps you find potential groupmates by leveraging GitHub’s metadata using a proprietary algorithm. In the Events tab, you can identify events and hackathons that your peers will be attending.

Table of Contents

• Table of Contents
• Purpose
• Prerequisites
• Quick Start
• User Interface
• Keyboard Mappings
• Features
  • Adding a new Student - add
  • Delete a Student - delete
  • Edit a Student - edit
  • Edit your Profile - edit profile
  • Find a Student - find
  • Find A Buddy Tab
    • Working
  • Show a Student Contact - show
  • Exporting Student Contacts - export
  • Importing Student Contacts - import
  • Setting a Contact as Favorite - fav
  • Setting a Contact as Unfavorite - unfav
  • Adding or removing tags from a contact - tag
  • Displaying the Help Window - help
  • Listing All Student Contacts - list
  • Deleting All Student Contacts - clear
  • Open Telegram of Current Contact
  • Open GitHub of Current Contact
  • Retrieve Command History - ↑ / ↓
  • Exiting the App - exit
• FAQ
• Command Summary

Purpose

This User Guide is intended for basic to advanced users of CohortConnect. It provides sufficient information for users to set up the application and learn all its features.

Prerequisites

1. Basic knowledge about CSV and JSON type file formats.
2. Basic knowledge about Technical Terms like CLI, UI and JAR.
3. Java 11 Installed on the System.

Quick Start

1. Ensure you have Java 11 or above installed in your computer.
2. Download the latest CohortConnect.jar release from here.
3. Place CohortConnect.jar in an empty folder.
4. Double-click the jar file to start the program.
5. The UI would look like this:

• Welcome Splash Screen

• This Window is only displayed once, when the Student launches the App for the first time.
  1. Enter Your Name in the Name Field.
  2. Enter Your VALID Telegram Handle in the Telegram Field.
  3. Enter Your VALID GitHub Username in the GitHub Field.

TIP:
1. Telegram Handle Conventions:
• Can only contain the letters a-z or A-Z, digits 0-9 and underscores.
• Is case-insensitive.
• Must be 5 to 32 characters long.


2. GitHub Username Conventions:
• Can only contain alphanumeric characters or hyphens.
• Cannot have multiple consecutive hyphens.
• Cannot begin or end with a hyphen.
• Can have a maximum of 39 characters.

• Main Window.

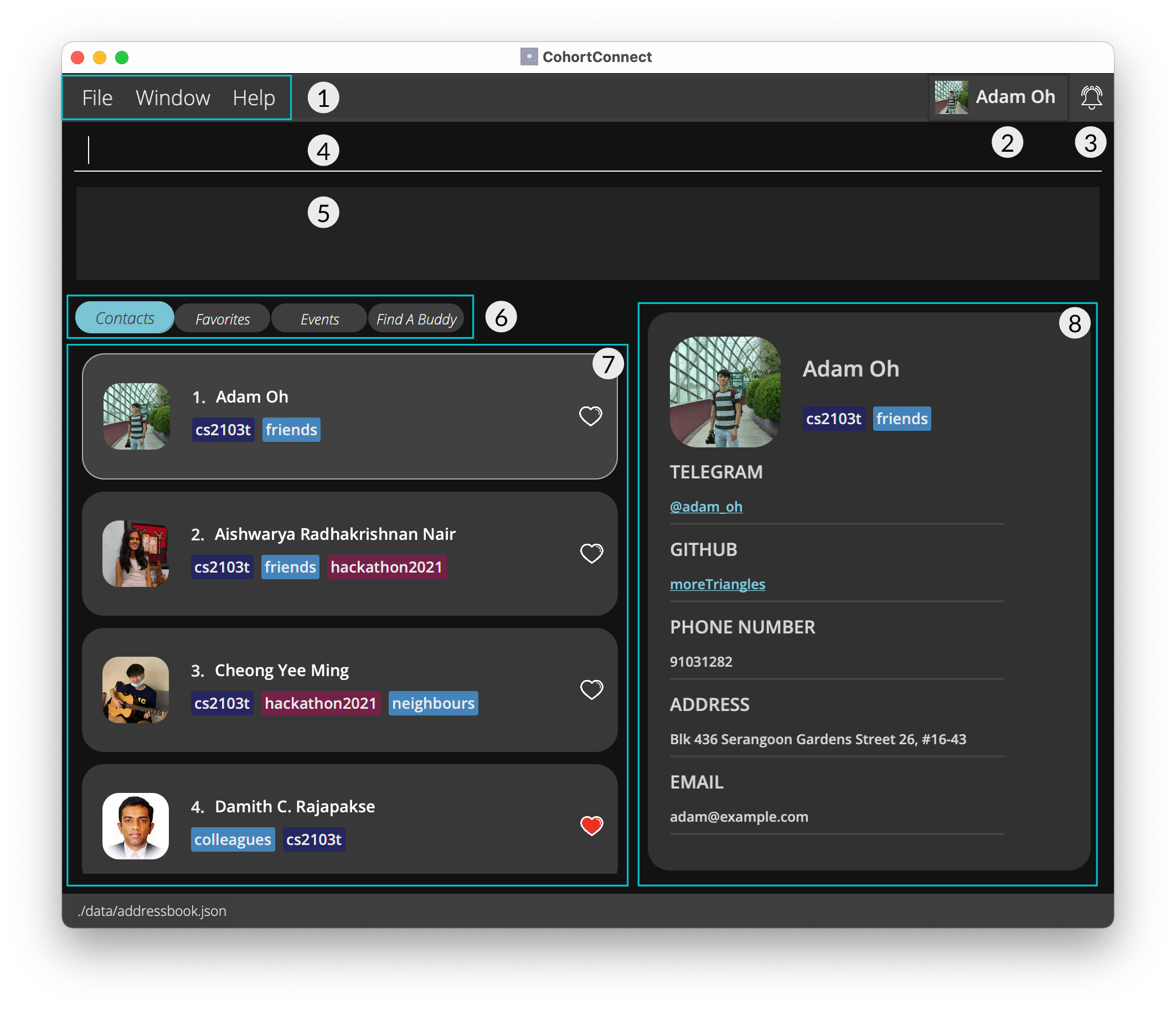

User Interface

1. Menu Bar: Contains links and keyboard shortcuts for navigating to other UI components.
2. Profile Window: Opens the Profile Window, where you can see your profile details entered during set up.
3. Events Icon: Switches to the Events tab.
4. Command Box: A text field to enter their commands and view previous commands command-line style.
5. Result Box: Displays the results of commands entered into the Command Box.
6. Tab Switcher: Shows all tabs, highlights the current tab, and switches between tabs by clicking or keyboard shortcuts.
7. Contact List: Shows all contacts in a scrollable list.
8. Contact Details: Shows all details of the currently selected contact.

Keyboard Mappings

1. ⌘ + 1: To Switch to Contacts Tab.
2. ⌘ + 2: To Switch to Favorites Tab.
3. ⌘ + 3: To Switch to Events Tab.
4. ⌘ + 4: To Switch to Find a Buddy Tab.
5. ⌘ + P: To Launch the Profile Window.
6. ↑: To Retrieve the Last Entered Command (Similar to Terminal).
7. ↓: To Retrieve the Next Entered Command (Similar to Terminal).
8. F1: To Launch the Help Window.

TIP: ⌘ for Mac = Ctrl for Windows

Features

Notes about command format:

• [x/xxx] refers to an optional field

TIP: In the Command Box, use ↑ and ↓ arrow keys to navigate the command history.

Adding a new Student - add

Adds a Student to the Address Book.

Format:

add n/<NAME> te/<TELEGRAM> g/<GITHUB> [p/<PHONE_NUMBER>] [e/<EMAIL>] [a/<ADDRESS>]
[t/<TAG>]

Example:

add n/John Doe te/johndoe g/john-doe p/98765432 e/johnd@eg.com
a/John Street, Blk 12, #01-01

Delete a Student - delete

Deletes the specified Student Contact from the Address Book.

Format:

delete <INDEX>

Example:

delete 7

Edit a Student - edit

Edits an existing Student Contact in the Address Book.

Format:

edit <INDEX> [n/<NAME>] [te/<TELEGRAM>] [g/<GITHUB>] [p/<PHONE>] [e/<EMAIL>]
[a/<ADDRESS>] [t/<TAG>]

Example:

edit 1 n/John te/john_123 t/TA

Edit your Profile - edit profile

Edits the Profile linked to the Address Book.

Format:

edit profile [n/<NAME>] [te/<TELEGRAM>] [g/<GITHUB>]

TIP:
1. Name Conventions:
• Should only contain alphabetical characters.
2. Telegram Handle Conventions:
• Can contain the letters a-z or A-Z, digits 0-9 and underscores.
• Must be 5 to 32 characters long.
3. GitHub Username Conventions:
• May only contain alphanumeric characters or hyphens.
• Cannot have multiple consecutive hyphens.
• Cannot begin or end with a hyphen.
• Can have a maximum of 39 characters.

• Edits the name, Telegram and GitHub fields of your profile.
• If the prefix of the field to be edited is mentioned, then its parameters cannot be left empty. E.g. edit profile te/ and edit profile n/Bob te/ would result in an error because the updated Telegram handle has not been specified.
• If multiple prefixes are missing parameters, CohortConnect will notify you of the first missing parameter. E.g. edit profile n/ te/ would result in an error saying that the name to be edited is missing.

Examples:

• edit profile te/bob_osum
• edit profile n/Bob g/bob-codes
• edit profile n/Alex te/alex_1 g/alex123

Find a Student - find

Finds students contacts whose names, Telegram handles, GitHub usernames or assigned tags contain any of the given keywords.

Format 1:

find <NAME> [MORE_NAMES]

• Searches for matching names

Note: Name must contain only alphabetical characters.

• Matches contact names with the exact keyword or those that contain the keyword as substring. e.g. find al will return Alex Yeoh as well as Roy Balakrishnan
• The search is case-insensitive. e.g. alex will match Alex
• Persons matching at least one keyword will be returned (i.e. OR search). e.g. Hans Bo will return Hans Gruber, Bo Yang

Examples:

• Search by single name: find alex
• Search by multiple names: find ai bob dom

Format 2:

find <TAG> [MORE_TAGS]

• Searches for contacts with matching tags.
• Matches students with the exact tag name. e.g. find t/friend will only display student contacts with the tag friend and not friends.
• The search is case-insensitive. e.g. find t/Friends will match contacts with the tag friends too.

Examples:

• Search by single tag: find t/classmates
• Search by multiple tags: find t/friends neighbours

Format 3:

find te/<TELEGRAM_HANDLE> [MORE_TELEGRAM_HANDLES]

• Searches for a student contact by telegram handle.
• Matches student contacts with the exact Telegram handle or Telegram handle that contain the keyword as a substring. e.g. find te/Al will display student contacts with the Telegram handles al_x1 and randall_xo.
• The search is case-insensitive. e.g. find te/Al will find the contact with the Telegram handle alex too.

Examples:

• Search by single Telegram handle: find te/dY
• Search by multiple Telegram handles: find te/bob al_x1

Format 4:

find g/GITHUB_USERNAME [MORE_GITHUB_USERNAMES]

• Searches for a student contact by GitHub username.
• Matches student contacts with the exact GitHub username or GitHub username that contain the keyword as a substring. e.g. find g/ai will display student contacts with the GitHub usernames ai-coder and kaira1208.
• The search is case-insensitive. e.g. find g/Al will find the contact with the GitHub username Alex.

Examples:

• Search by single GitHub username: find g/dY
• Search by multiple GitHub usernames: find g/ai-coder kaira1208

Find A Buddy Tab

The Find a Buddy feature can be accessed by just switching to the last tab. The tab will display the top 5 matches to your profile based on gathered GitHub data.

Working

The GitHub data used includes the percentage of contributions for different languages in the top 30 repositories, and the number of repos in the user’s profile.

A similarity score is calculated using these features. The similarity score is based on the following three metrics:

• Euclidean Distance
• Manhattan Distance
• Cosine Similarity

On clicking a student, you can view the similarity score and the languages you have in common with the selected student.

Show a Student Contact - show

Shows detailed information of a Student Contact. This can be done using the name of the contact, GitHub username, telegram id or the index. It shows the student with the corresponding detail containing the keyword.

Note: The show keywords are case-insensitive, john Doe will match with John Doe, JOHN DOE and JoHN DoE

Format 1:

show <NAME>

Example 1:

show John Doe

Note: If the exact name is not given, the show function will act similar to find and then you can pick out one contact from the given list.

Format 2:

show g/<GITHUB_USERNAME>

Example 2:

show g/john-doe

Format 3:

show te/<TELEGRAM_ID>

Example 3:

show te/john_doe

Format 4:

show <INDEX>

Example 4:

show 4

Exporting Student Contacts - export

You can export your entire address book to a specified JSON or CSV file. This can be used to share contacts with others, or to store contacts in an external format.

TIP: CSV files can be opened and edited with Excel.

The exported file will be in the same folder as the application. Exporting will not overwrite existing files.

Format 1:

export <FILENAME>.json

Example 1:

export Friends.json

Format 2:

export <FILENAME>.csv

Example 2:

export Friends.csv

Importing Student Contacts - import

You can import contacts from a specified JSON or CSV file, saving you the hassle of adding contacts individually. This can be used to load the module contacts provided at the start of the semester, or any other contacts shared with you.

TIP: CSV files can be opened and edited with Excel.

The import file must be in the same folder as the application. Importing will not remove existing contacts, and ignores duplicate contacts.

Format 1:

import <FILENAME>.json

Example 1:

import CS2103T.json

Format 2:

import <FILENAME>.csv

Example 2:

import CS2103T.csv

Setting a Contact as Favorite - fav

Sets a particular Student Contact as a Favorite, only if the contact has not been favorited.

Format:

fav <INDEX>

Example:

fav 1

Setting a Contact as Unfavorite - unfav

Sets a particular Student Contact as an Unfavorite, only if the contact has been favorited.

Format:

unfav <INDEX>

Example:

unfav 1

Adding or removing tags from a contact - tag

Directly adds or removes tag(s) from a specific student contact.

Format:

tag <INDEX> a/<TAG_TO_ADD> [MORE_TAGS] r/<TAG_TO_REMOVE> [MORE_TAGS]

TIP:
• Index cannot be left blank, must be a positive integer and be specified after the tag keyword.
• To add or remove an event or module type tag, specify the tag type before the name of the tag. E.g. tag 2 a/event-hackathon (to add an event tag) or tag 2 a/module-CS2103T (to add a module tag) and likewise for remove. Tags specified without valid type before the name will be considered as general tags.
• You can choose to only add tag(s), only remove tag(s) or add tag(s) and remove tag(s)

• Adding tags :
  • If a/ is entered, it must be followed by the name(s) of tag(s) to be added. E.g. tag 1 a/ r/friends would result in an error even if only the friends tag was to be removed.
  • Duplicate tags aren’t allowed. E.g. tag 1 a/teammate would result in an error if the student contact at index 1 already has the tag teammate.
  • If multiple tags are to be added and there is at least 1 tag that is not already assigned to the specific contact, then this tag is added and the remaining duplicate tags are ignored. E.g. if tag 1 a/classmate a/cca would result in only the classmate tag being added to the student contact at index 1 if it already has the tag cca.
• Removing tags :
  • If r/ is entered, it must be followed by the name(s) of tag(s) to be removed. E.g. tag 1 a/friends r/ would result in an error even if only the friends tag was to be added.
  • Attempting to remove a tag that is not assigned to the specified contact is not allowed. E.g. tag 1 r/teammate would result in an error if the student contact at index 1 is not assigned the tag teammate.
  • If multiple tags are to be removed and there is at least 1 valid tag that can be removed from the specific contact, then this tag is removed and the remaining invalid tags are ignored. E.g. if tag 1 r/classmate r/cca would result in only the classmate tag being removed from the student contact at index 1 if the tag cca is not assigned to them already.

Examples:

• Adding single (general) tag : tag 1 a/friends
• Adding single (event) tag : tag 2 a/event-hackathon
• Adding multiple tags : tag 3 a/friends a/teammate
• Removing multiple (general) tags : tag 2 r/family r/owesmoney
• Removing multiple (module) tags : tag 2 r/module-CS1101S module-MA1521
• Adding and removing a tag : tag 4 a/friends r/colleagues

Displaying the Help Window - help

Displays the Help Window, which consists of a list of possible Commands, and a link to this UserGuide.

When the Visit URL button is clicked, the UserGuide is opened in the system’s default web browser.

Format:

help

Listing All Student Contacts - list

Lists all the student contacts in the address book.

Format:

list

Deleting All Student Contacts - clear

Deletes all the student contacts present in the address book.

Format:

clear

DANGER: Use With Caution!

Open Telegram of Current Contact

Opens the current contact’s Telegram link in your default web browser. If you have Telegram installed on your device, you will be redirected to the application.

TIP: Select a contact with show <INDEX> or show <NAME>.

Format:

te

Open GitHub of Current Contact

Opens the current contact’s GitHub profile in your default web browser.

Format:

g

Retrieve Command History - ↑ / ↓

Similar to a Command Line Interface, ↑ retrieves the previous command, while ↓ retrieves the next command.

Exiting the App - exit

Exits the App.

Format:

exit

FAQ

Q: On typing and running commands, the error message “XXXX” is shown, what should I do?

A: Please strictly follow the command format to avoid such issues.

Command Summary
